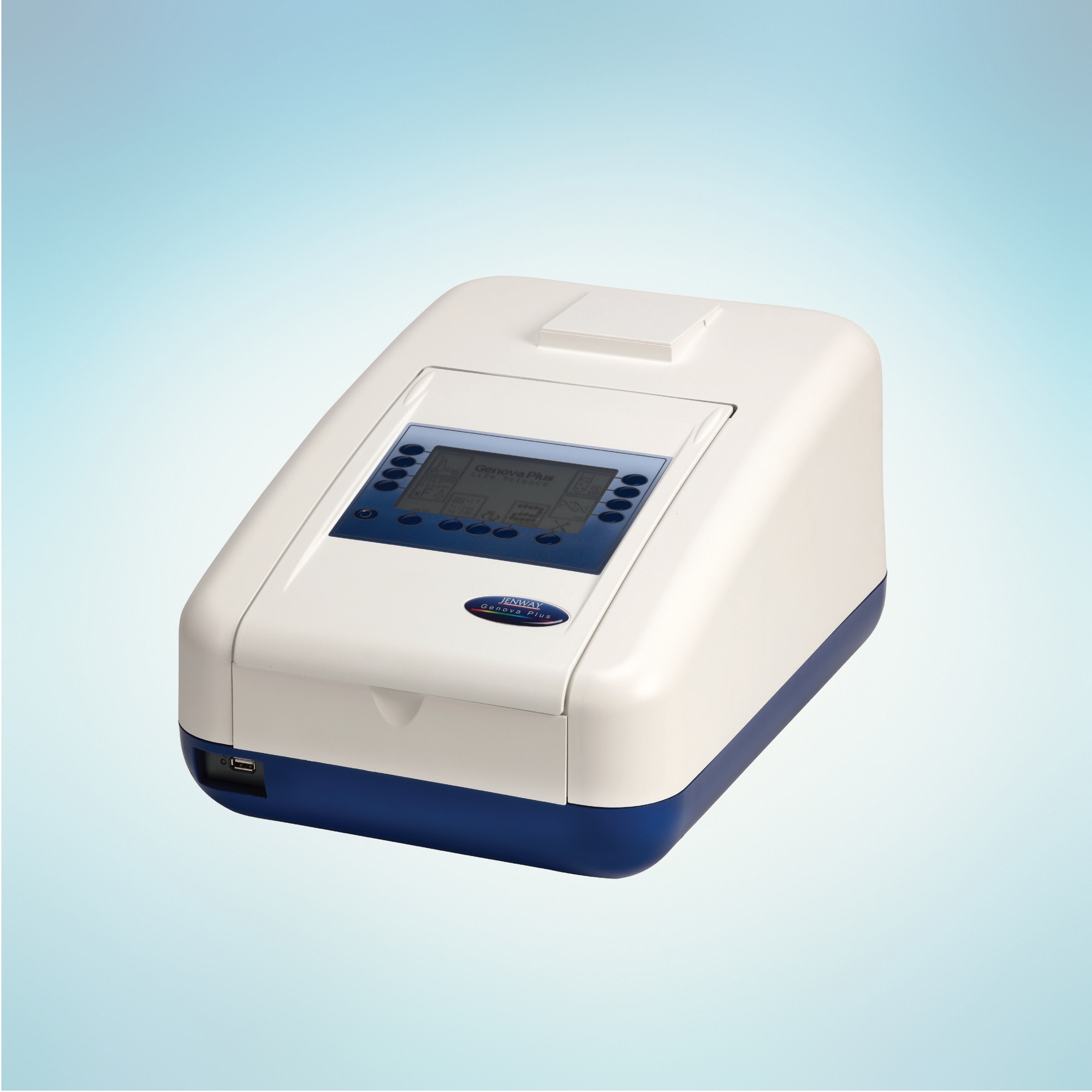

UV/visible spectrophotometer

Product code:

Genova Plus

Features:

UV/visible spectrophotometer (JENWAY)

Features:

Life Science Spectrophotometer
5nm spectral bandwidth
Absorbance range -0.3 to 2.5A
Pre-programmed for DNA/RNA analysis
Purity scan across entire wavelength range
Pre-programmed methods for protein analysis
Standard spectrophotometer functions
Press to read xenon lamp
Icon driven software
Small footprint
Method and result saving to USB memory stick
3 year warranty including xenon lamp

Technical Specification:

Parameter	Genova Plus
Wavelength Range	198 to 1000nm
Light source	Xenon lamp
Wavelength Resolution	1nm
Wavelength Accuracy	± 2nm
Wavelength Repeatability	± 0.5nm
Spectral bandwidth	5nm
Photometric Transmittance	0 to 199.9%
Photometric Absorbance	- 0.300 to 2.500A
Photometric Accuracy*	± 1%T, ± 0.01Abs at 1.000 Absorbance
Photometric Resolution	0.1%T, 0.001A
Concentration/Quantitation Range	0 to 9999
Concentration Calibration	Blank with a single standard or factor
Quantitation Calibration	Blank with up to 12 standards
Quantitation Curve fit algorithms	Quadratic, quadratic through zero, linear, linear through zero, interpolate
Kinetics Measurement time	2 to 9999 seconds
Kinetics Calibration	Blank with a single standard or factor
Kinetics Display	Graphical and concentration
Kinetics Analysis	Concentration, rate of change, initial and final absorbance/ %T
Spectrum/Purity Range	198 to 1000nm
Scan interval	selec table 1, 2 or 5nm
Spectrum/Purity Analysis	Absorbance or transmittance and peak and valleys
Multi-wavelength Data Points	Up to 4 wavelengths
Multi-wavelength Calculations	Sum, product, ratio and difference
DNA Measurement Modes	dsDNA, ssDNA, RNA, Oligonucleotides, 260/ 280, 260/ 230, Variable ratio
Multi-wavelength Plus Data Points	Up to 3 wavelengths plus optional reference wavelength
Multi-wavelength Plus Calculations	Concentration and ratio
Protein Measurement Modes	BCA, Bradford, Lowry, Biuret, Direct UV
OD 600 Range	0.00 E- 19 to 9.99 E+ 19
OD 600 Calibration	Blank with a single standard or factor
GLP Support	Current time and date, user ID, instrument lock and method lock
Method storage	312 (including pre-programmed methods)
Results memory	Limited by attached mass storage device
Removable media	USB (supplied)
Outputs	USB, Analogue, RS232, Integral printer
Size (w x d x h)	275 x 400 x 220mm
Weight	6kg
